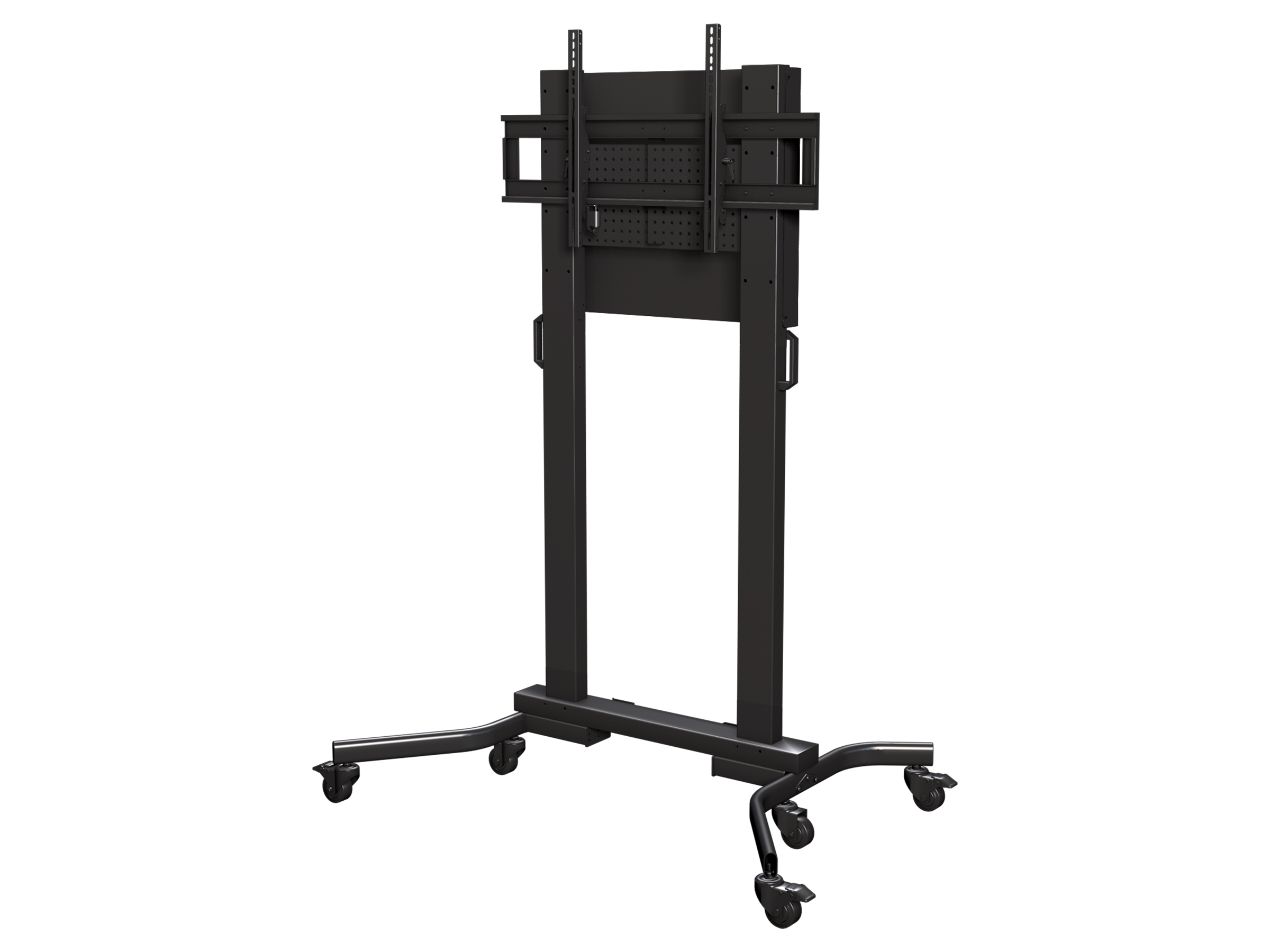

MPM-X85U-LS Mustang Professional Cart/Stand


The Mustang Pro MPM-X85U-LS Mobile Carts and Floor Stands for 50″ – 90″ LCD and Plasma TVs with a 300 lb load rating. Mustang AV’s heavy duty mobile cart for extra large displays is made for high traffic environments. Choose from a variety of preconfigured models or build your own specific configuration a-la-carte. Side shelves are designed for heavy use of presentation laptops and can be vertically adjusted without the use of tools as well as swiveled continuesly up to 45º in front or behind the display. Side shelves also easily retract for transport and storage. The solid front/back shelf can be mounted either in front or behind the display at any height position.

Call us Now at 866-395-0370 for Ordering Information.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPM-X85U-LS Floor Display Mount. Max VESA: 800 x 500, Max Weight: 300lbs

SKU: MPM-X85U-LS Categories: , ,


Display Sizes: 50″ – 90″ TVs
Load Rating: 300 lbs
Max VESA Pattern: 800x500mm
Lateral Adjustment: 4 height positions center of display at 55”, 61”, 63”, 67”
Tilt: +15°/-5° with incremental tilt lock
Security Feature: One-touch lock and key system
Max Component Depth: 3” (with cover installed)
Shelves: Vertically adjustable; side shelves can be adjusted continuously from 45° in front to 45° behind the display
Optional Accessories: MPMP-C9 back panel and cover system, MPMS-9S laptop shelf, MPMS-9B front/back shelf, MPMS-9T top shelf
Construction: Aluminum/high-grade cold rolled steel
Finish: Scratch resistant epoxy powder coat
