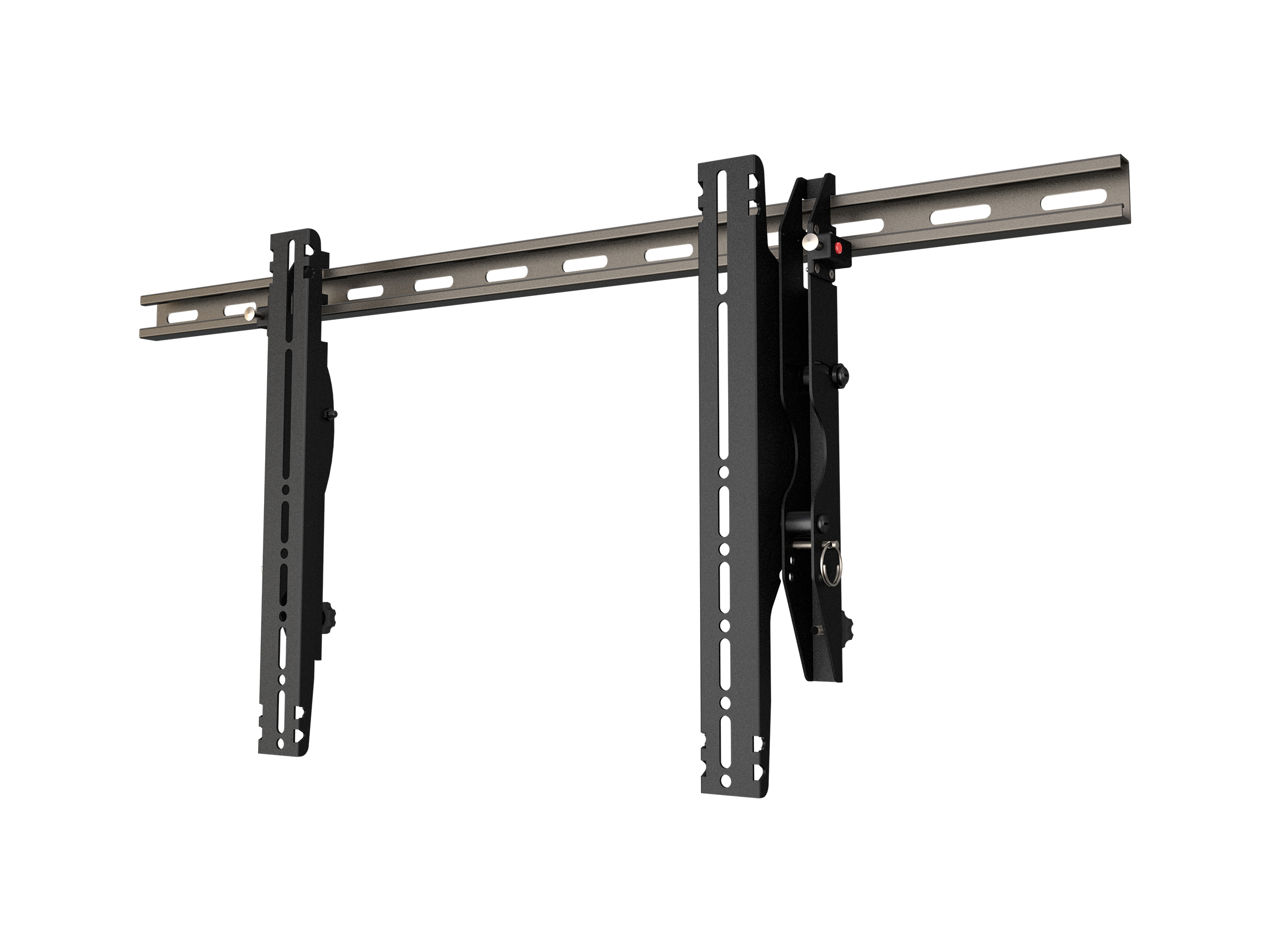

MPWM-UNILU Wall Mounted Menu Board

MSRP: $128.75

Description

Quick Installation Unistrut Wall Brackets

  • Installs directly to single track unistrut in minutes
  • No tools needed for alignment
  • Easily aligns on uneven surfaces
  • 2 different wall brake position points
  • Pre-set tilt angles with locking pins
  • Supports displays up to 120lbs
  • One-touch lock and release mechanism
Call us Now at 866-395-0370 for Ordering Information.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPWM-UNILU Wall Mounted Menu Board. Unistrut Menu Board Brackets for 30” – 65”+ displays.

Specs

Display Sizes: 30” – 65”+
Load Rating: 120lb (54kg) per display
Max VESA Pattern: 401mm high
Orientation: landscape or portrait
Displays per configuration: unlimited
Tilt: +18°/-0°
Depth From Wall: 2.90” (74.50mm)
Depth Adjustment: ±0.51”
Lateral Adjustment: varies with screen
Mounting Surface: 1 – 5/8” unistrut channel
Construction: high-grade cold rolled steel
Product Finish: scratch resistant epoxy powder coat
Color: Black
