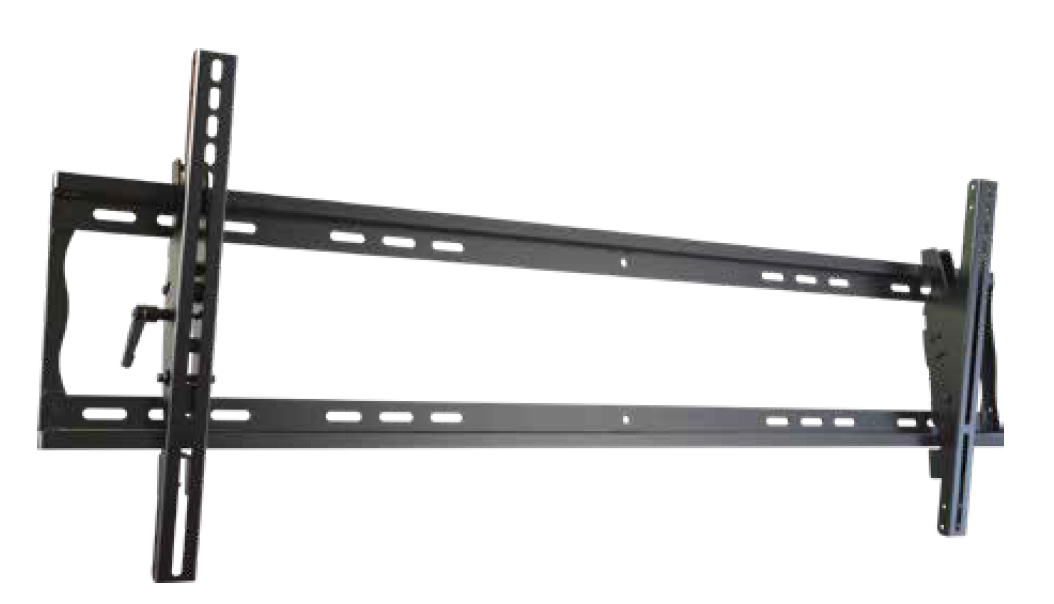

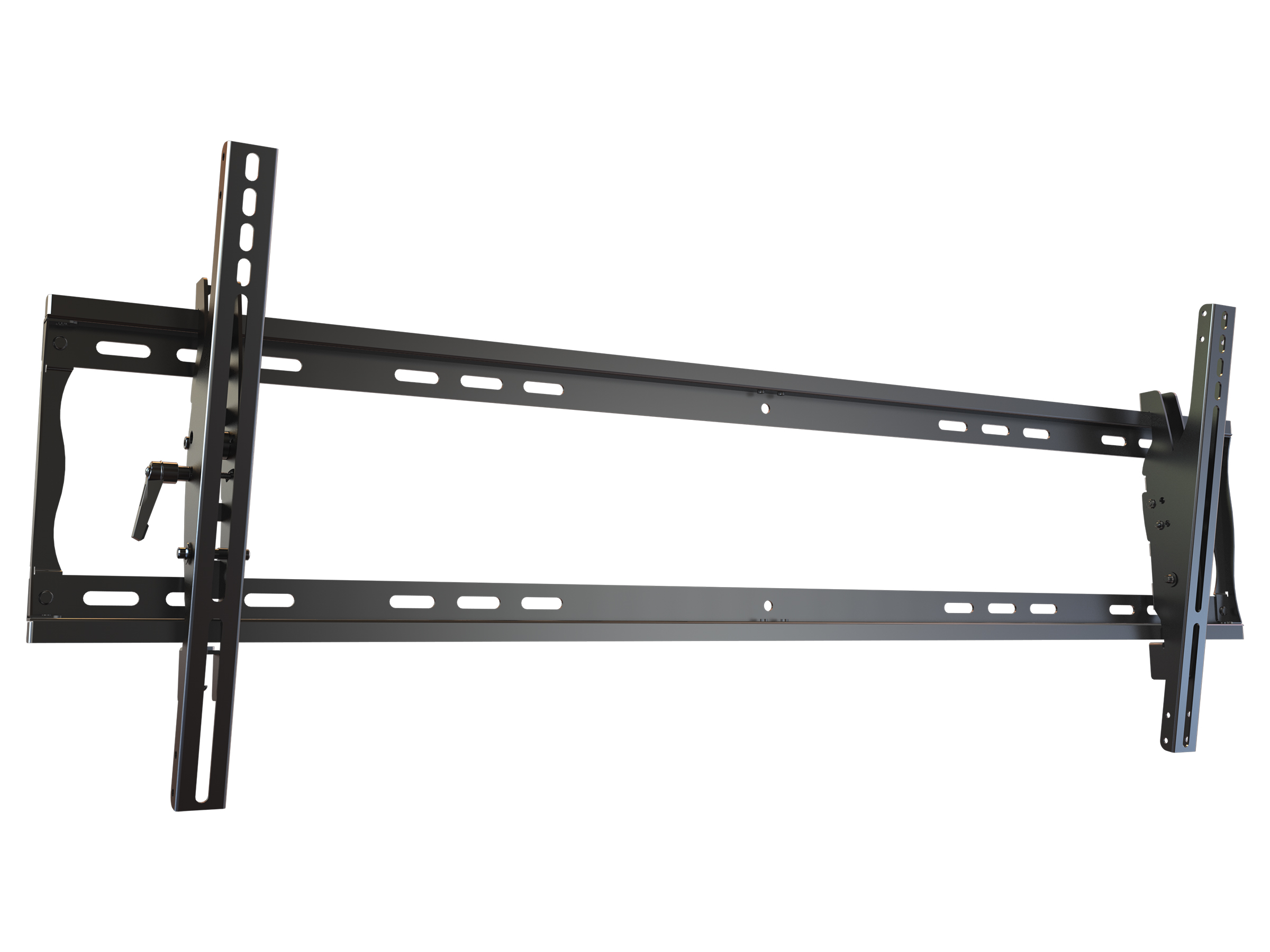

MPT-XHD90 Mustang Professional Heavy Duty Tilting Wall Mount

Description

Universal mount for large Format & Interactive Displays. The Mustang Pro MPT-XHD90 Heavy Duty Tilting Wall Mount is the sturdiest, most durable mount in the industry. NEW Robust Series Tilt mount for large-format 70 to 90” displays with triple stud mounting. Tilt mount with triple stud mounting that facilitates the most secure installation possible for heavier large-format 70 to 90” displays. Includes a horizontal slide mechanism that helps center the display on the wall as well as post-installation leveling that compensates for uneven ceilings and enables a perfectly positioned display. A unique all steel click-in-place feature simplifies the installation by eliminating the need to reach up behind the display with a wrench or screwdriver to secure or remove it.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPT-XHD90 Heavy Duty Tilting Wall Mount. Max VESA: 800x400mm, Max Weight: 300lbs

SKU: MPT-XHD90 Categories: , ,

Specs

Display Sizes: 70”- 90”
Lateral Adjustment: Varies on display
Weight Capacity: 300 lb (136kg)
Max Mounting Pattern: 1105x760mm
Max VESA Pattern: 800x400mm
Post-installation Leveling: Yes
Tilt: +15/-5
Depth From Wall: 2.2” (55.8mm)
Security: Dual steel lock brackets with security screws
Product Weight: 9.3 lb (4.2kg)
Construction: High-grade cold rolled steel and aluminum
Product Finish: Scratch resistant epoxy powder coat
Color: Black
Warranty: Limited lifetime
