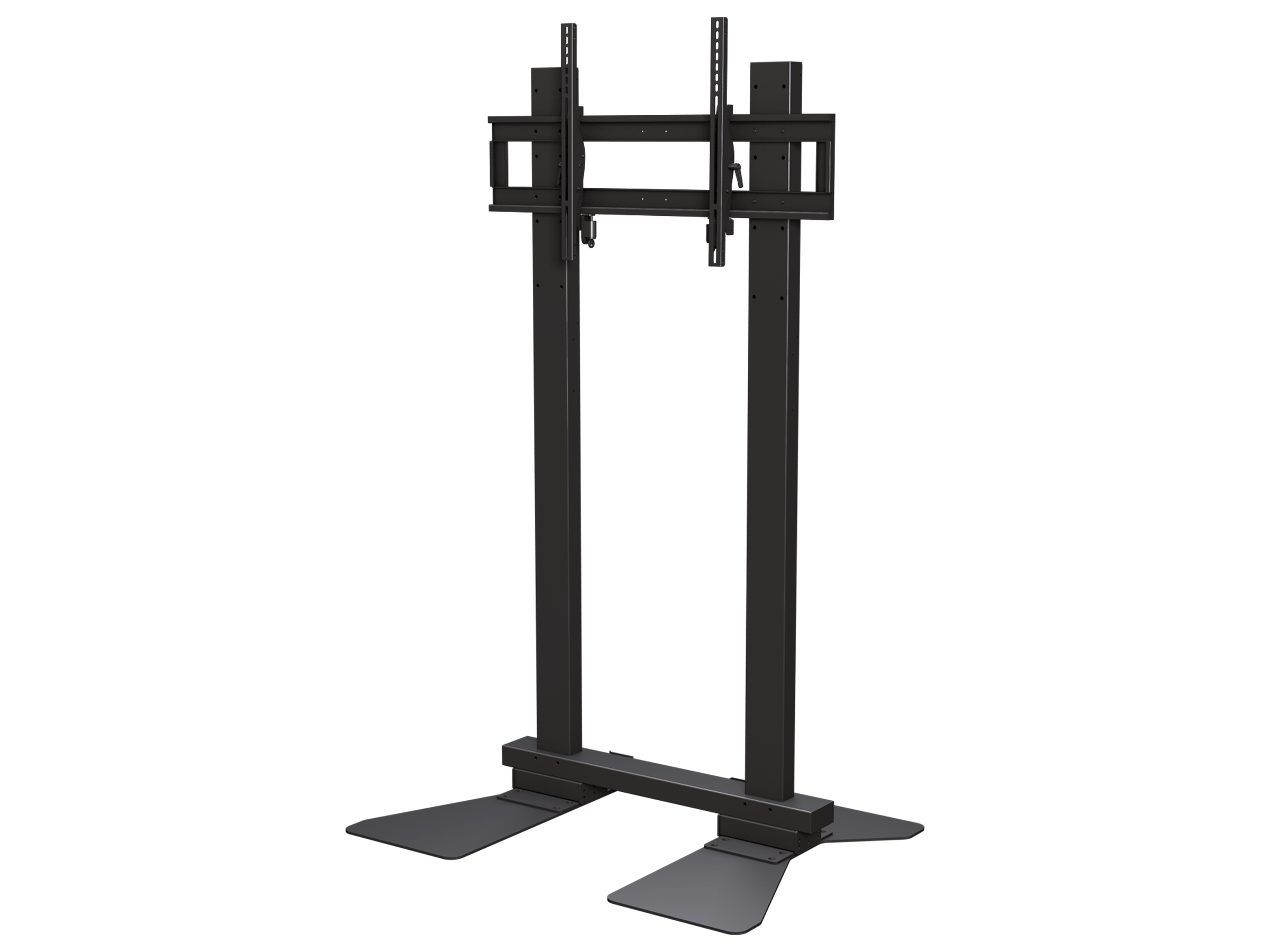

MPS-X85U Mustang Professional Floor Stand

Description

The Mustang Pro MPS-X85U Floor Stand For 36” to 60”+ displays with a 300 lb load rating. Designed using 3 upright steel columns, the MPS-X85U is easily assembled and provides maximum display exposure with nearly 87” of height. Constructed of high grade steel with epoxy powder coating with a lifetime limited warranty.

  • Designed for quick assembly & disassembly
  • Ultra flat, heavy-duty base, ideal for high traffic areas
  • 86” of height for maximum display exposure
  • Optional shelving can be attached at any time
  • Through-column cable routing for an uncluttered look
Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPS-X85U Floor Display Mount. Max VESA: 800 x 500, Max Weight: 300lbs

Specs

Display Size: 36″ – 60″+
Orientation: Landscape
Weight capacity: 300lb (136.07kg)
Max mounting pattern: 800x400mm
VESA mounting patterns: 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
Tilt: +15°/-5°
Construction: High-grade cold rolled steel
Case dimensions: 41″ x 24″ x 20″
Color: Black
Model numbers: MPS-X85U
Warranty: Limited Lifetime
Product Weight: 126.2lb (57.4kg)
