MPF-XHD136UAL Mustang Professional Flat Mount


MPF-XHD136U is the most robust universal mounting solution in its class with a hefty 400lb load rating, making it the ideal solution for large format and interactive displays up to 100” and larger. Designed with the installer in mind, the MPF-XHD136U shifts the mounting center down, which fully utilizes the integrated pivot and kickstand features and simplifies wiring during installation and service.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

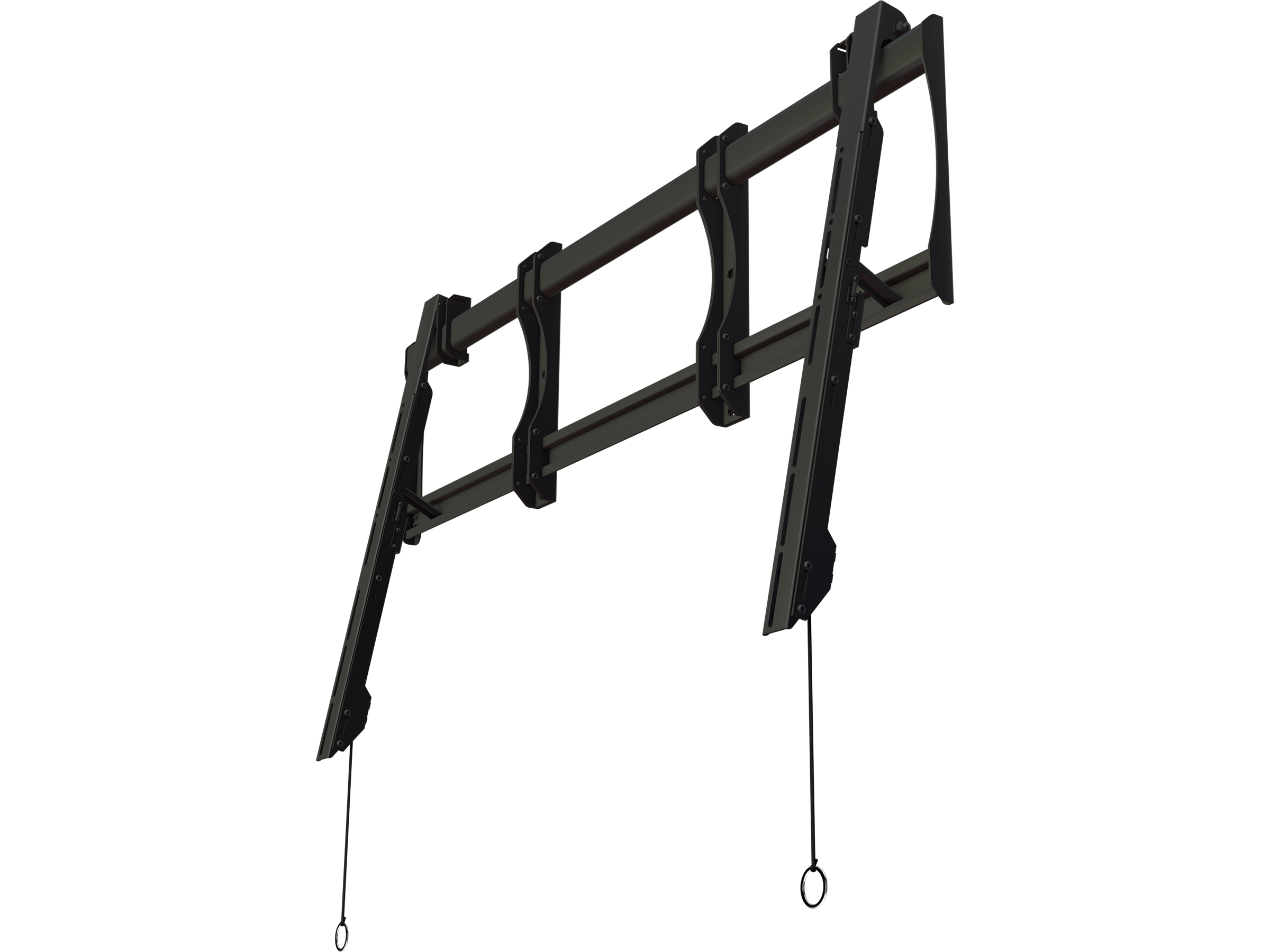

Mustang Professional MPF-XHD136UAL Flat Display Mount. Max VESA: 1300 x 600, Max Weight: 400lbs

SKU: MPF-XHD136UAL Categories: , ,


Display Sizes: 70″ – 100″+ Large Format & Interactive Displays
Load Rating: 400 lbs
Max VESA Pattern: 1300x600mm
Construction: High-grade cold rolled steel and aluminum
Post-Installation Leveling: Yes
Depth From Wall: 1.97″
Security: Dual steel lock brackets with security screws
