MPA-L64UF Mustang Professional Articulating Mount

Description

Universal Articulating Dual Stud Mount For 37″ – 75″ TVs with a 130 lb load rating. The Mustang Pro MPA-L64UF can be installed via Double wood stud structures, structural concrete and cinder block surfaces. For metal stud installation, use Mustang HT toggle bolt hardware.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

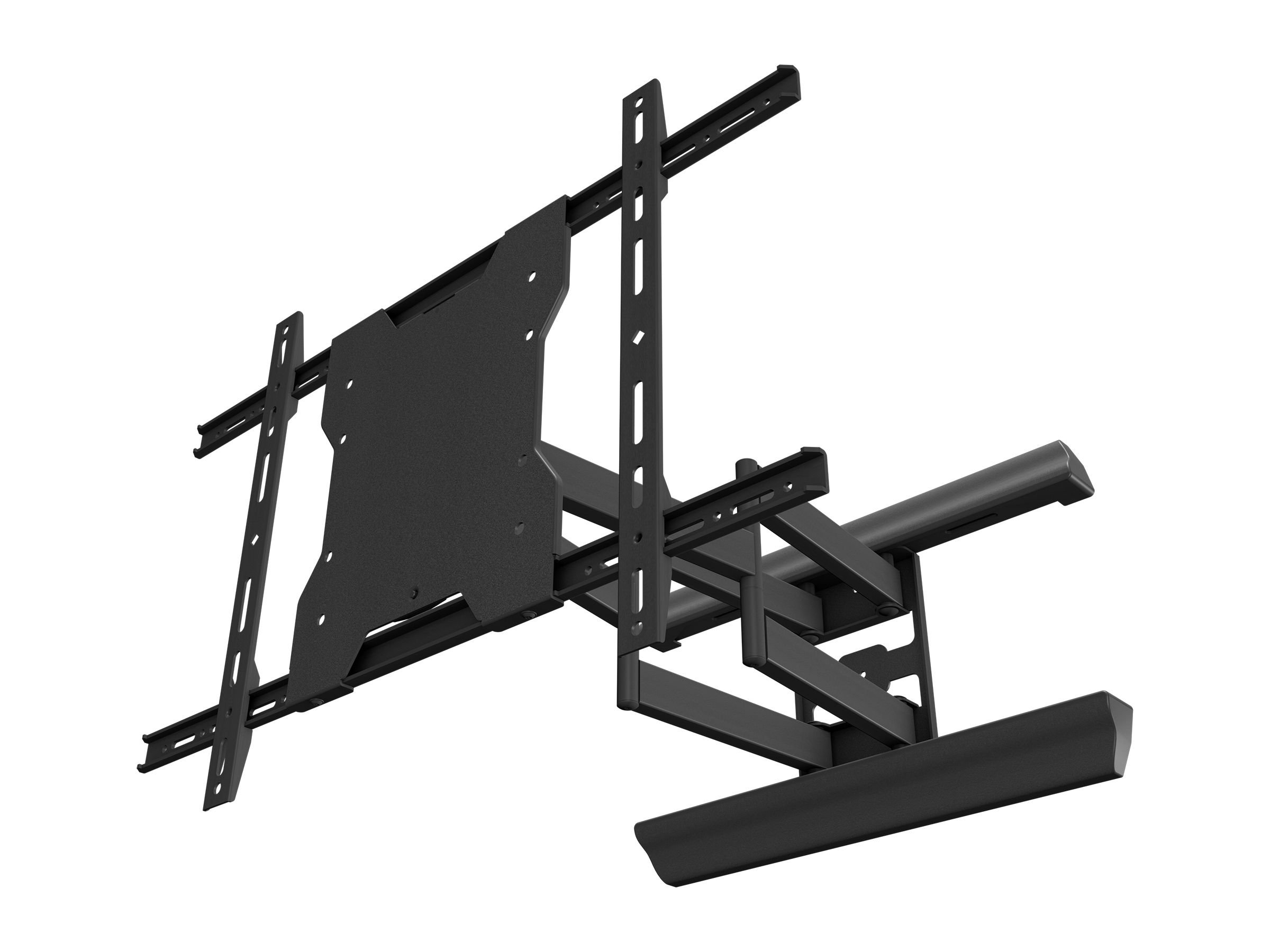

Mustang Professional MPA-L64UF Articulating Display Mount. Max VESA: 690 x 540, Max Weight: 130lbs

Specs

Display Sizes: 37″ – 75″ TVs
Load Rating: 130 lbs
Max VESA Pattern: 690x540mm
Construction: Fabricated from high-grade cold rolled steel and aluminum with durable epoxy powder coat finish. Includes a complete array of high-grade fasteners, in a pre-sorted hardware pack for easy selection. UL Listed.
Installation Surface: Double wood stud structures, structural concrete and cinder block surfaces. For metal stud installation, use Mustang HT toggle bolt hardware.
Installation: All models include a wall template and come pre-assembled for quick, easy, and efficient installation.
Fully Adjustable: Simplified post-installation vertical adjustment and screen leveling. Side adjustment capability (pre or post installation) for precise placement, corner mounting and centering.
Smooth Lockable Tilt: Unique balanced smooth-tilt feature eliminates typical friction adjustment.
Stylish: Stylish, heavy duty design includes covers and cord management.
