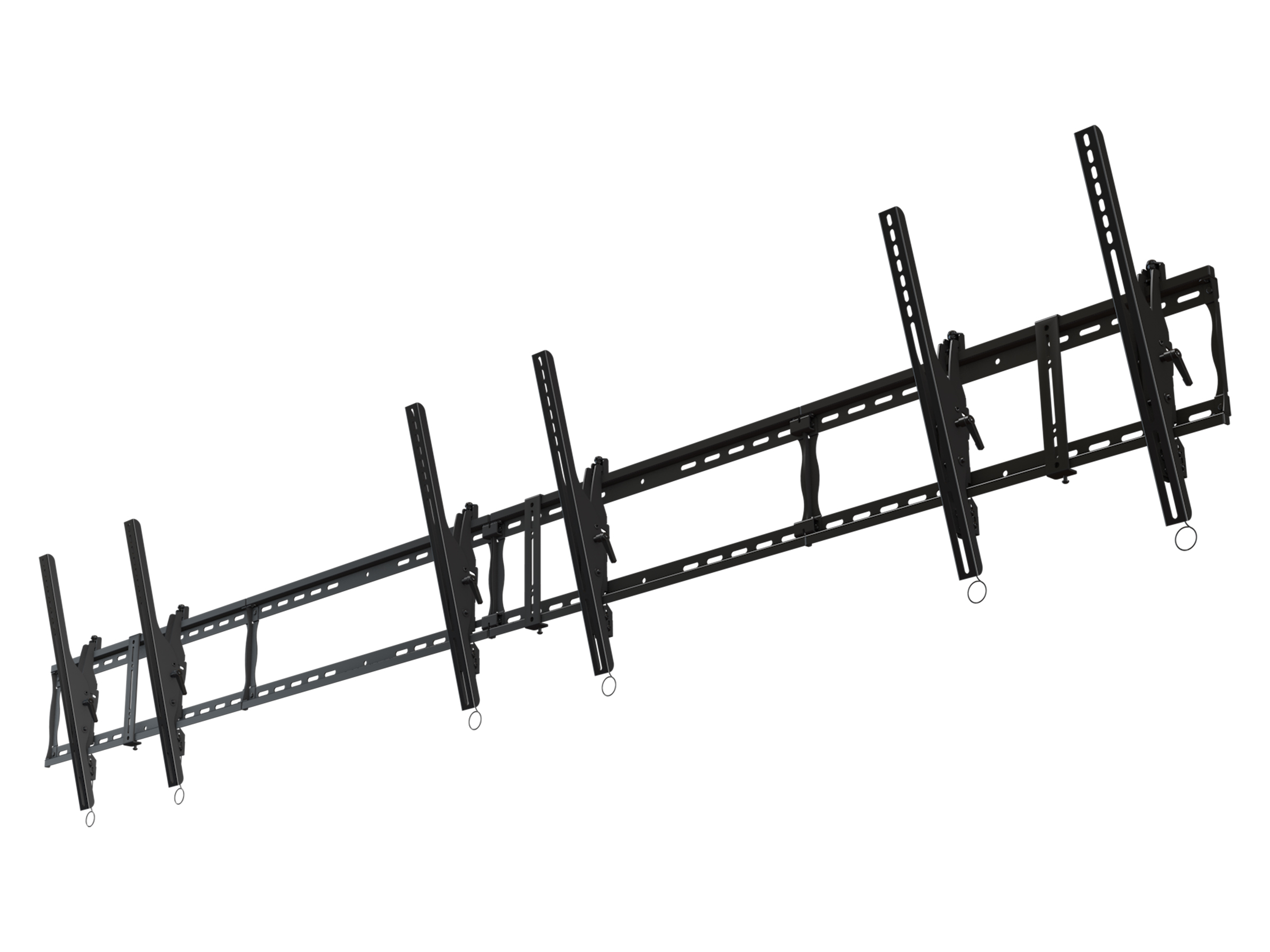

MPWML-LU Mustang Professional Menu Board Mount

Description

The Mustang Pro MPWML-LU Wall Mounted Menu Board System for 48″ – 55″ LCD and Plasma TVs with a 200 lb load rating. A fully modular solution for mounting menu board displays to the wall in landscape or portrait orientation, for commercial displays up to 65”+ in size. Features unique post-installation leveling and cable management capabilities, and includes all of the necessary components and hardware needed to complete the installation. Systems designers need only to know the size and number of displays to be used as well as the orientation; we’ll kit the complete mount system and ship it to the location requested. We’ll even provide a custom dimentioned drawing with each configuration ordered. Prices are based on the number of displays to be mounted, further simplifying the specification and quotation process.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPWML-LU Menu Board Display Mount. Max VESA: 800 x 400, Max Weight: 200lbs

Specs

Display Sizes: 48″ – 55″ TVs
Load Rating: 200 lbs
Max VESA: 800x400mm
Orientation: Landscape or portrait
Tilt: +15°/-5°
Depth From Wall: 2.2″
Height Adjustment: ±0.4”
Lateral Adjustment: Varies with screen
Mounting Surface: wood stud, concrete, cinder block or metal stud (accessory required MPHT)
Stud Spacing: Dual stud 16”, 20”, 24” on center, triple stud on 16” center.
Construction: High-grade cold rolled steel
Finish: Scratch resistant epoxy powder coat
