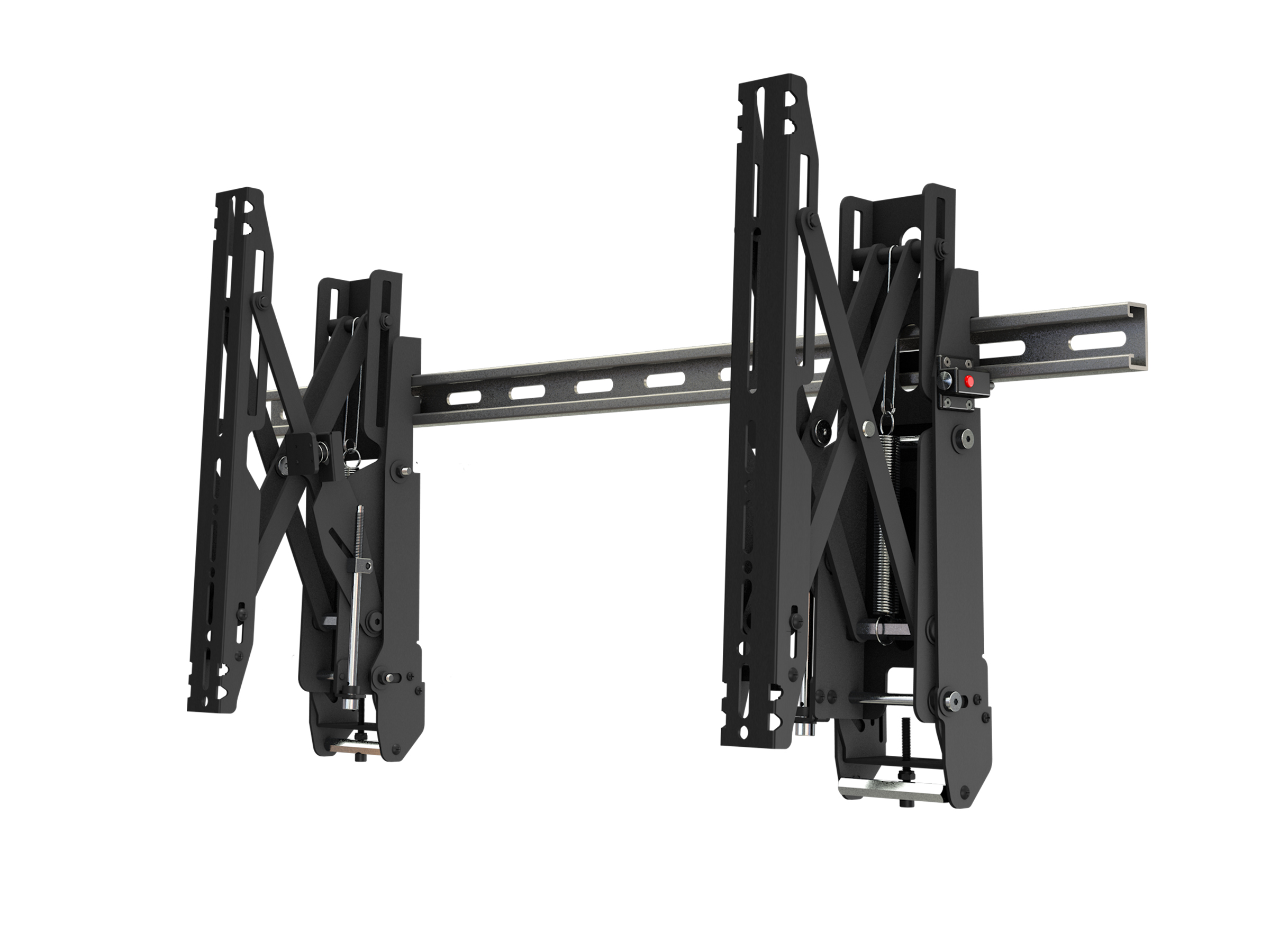

MPVW-UNIPPV2U Mustang Professional Video Wall Mount

Description

The Mustang Pro MPVW-UNIPPV2U Unistrut Video Wall Mount for 37” -75” or larger displays with a 150 lb load rating. MPVW-UNIPPV2U allows multiple points of micro-adjustment with push in – pop out technology.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPVW-UNIPPV2U Unistrut Video Wall Mount. Max VESA: 1000 x 400, Max Weight: 150lbs

SKU: MPVW-UNIPPV2U Categories: , ,

Specs

Load Rating: 150 lbs
Max VESA Pattern: 1000x400mm
Adjustments: Depth, plumb, vertical, leveling
Display Size: 37” -75” or larger
Mounting Surface: 1-5/8” unistrut channel
Post-installation Leveling: +- 0.5” (1” total)
Plumb Micro-Adjustment: +- 0.5” (1” total)
Depth Micro-Adjustment: 2.95” total depth
Depth From Wall: Min 4.10” Max 7.05”
Extension: 11.25” extension from wall during service
Security: Patent-pending one-touch lock system
Orientation: Landscape
