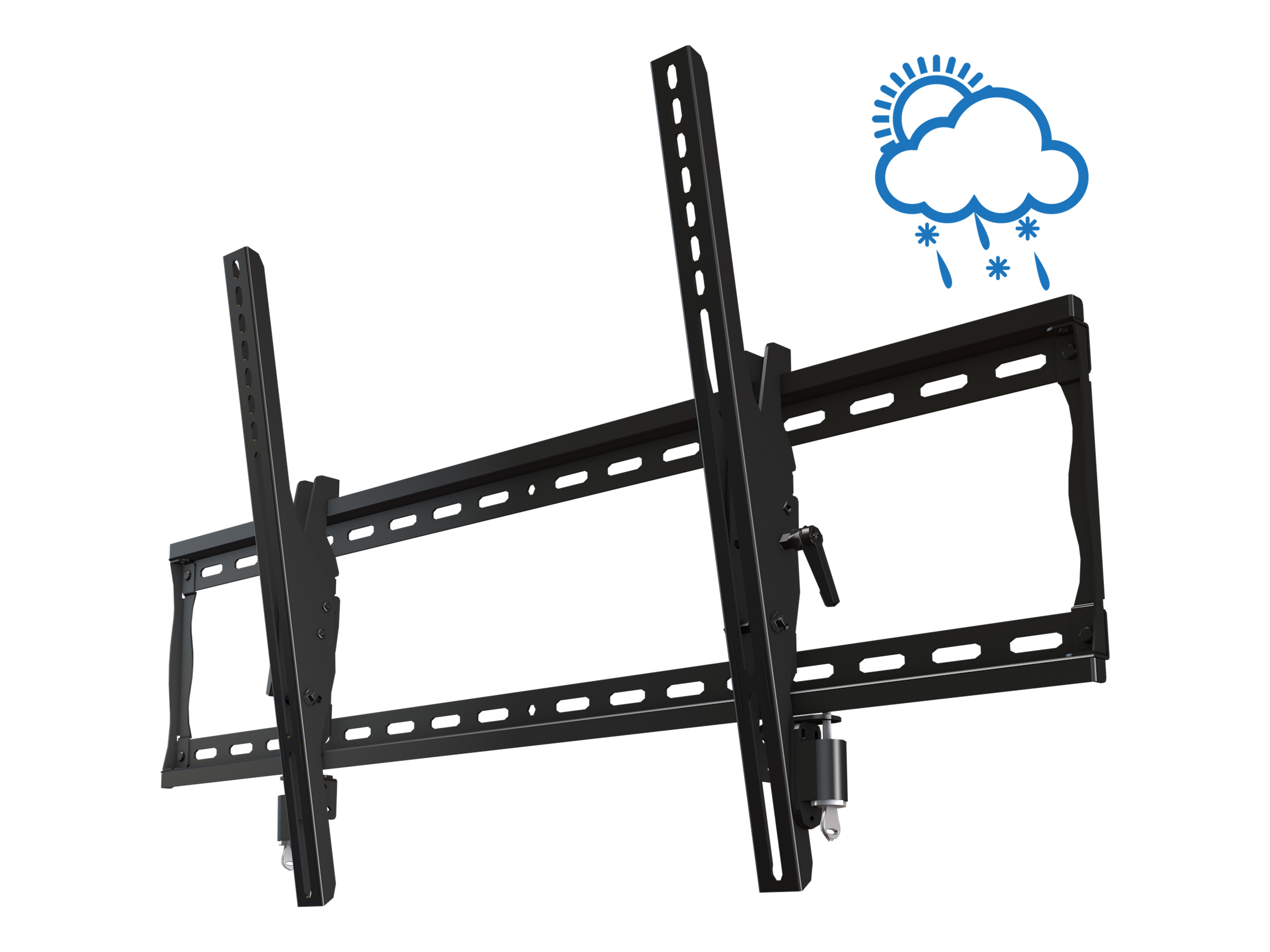

MPTO-X85ULL Mustang Professional Tilt Mount

Description

Tilt Outdoor Universal Wall Mount With Dual Security lock For 37” to 90” LCD, LED and Plasma TVs. The Mustang Pro MPTO-X85ULL offers quick, easy, and efficient installation. Monitor clicks in place when installed. No need to turn screws that are difficult to see and reach, unless you feel the need for additional security, in which case securing screws are there as well. Post-installation leveling feature allows fine-tuning when walls are not perfectly straight.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPTO-X85ULL Tilt Display Mount. Max VESA: 838 x 501, Max Weight: 200lbs

SKU: MPTO-X85ULL Categories: , ,

Specs

Display Sizes: 37″ – 90″ LCD, LED and Plasma TVs
Security Dual security locks
Load Rating: 200 lbs
Max VESA Pattern: 800x500mm
Tilt: Pre-tentioned tilt mechanism with ratcheting handle benefits bottom-heavy displays.
Construction: Fabricated from high-grade cold rolled steel with durable epoxy powder coat finish.
Installation Surface: Double or triple wood stud structures, depending on model. Also mounts to structural concrete and cinder block surfaces. For metal stud installation, use Mustang toggle bolt hardware.
Includes: Heavy duty leveling mechanism. Includes optional locking bolt.
