/////MPCM-X86U Mustang Professional Menu Board Mount

MPCM-X86U Mustang Professional Menu Board Mount

MSRP: $510.00

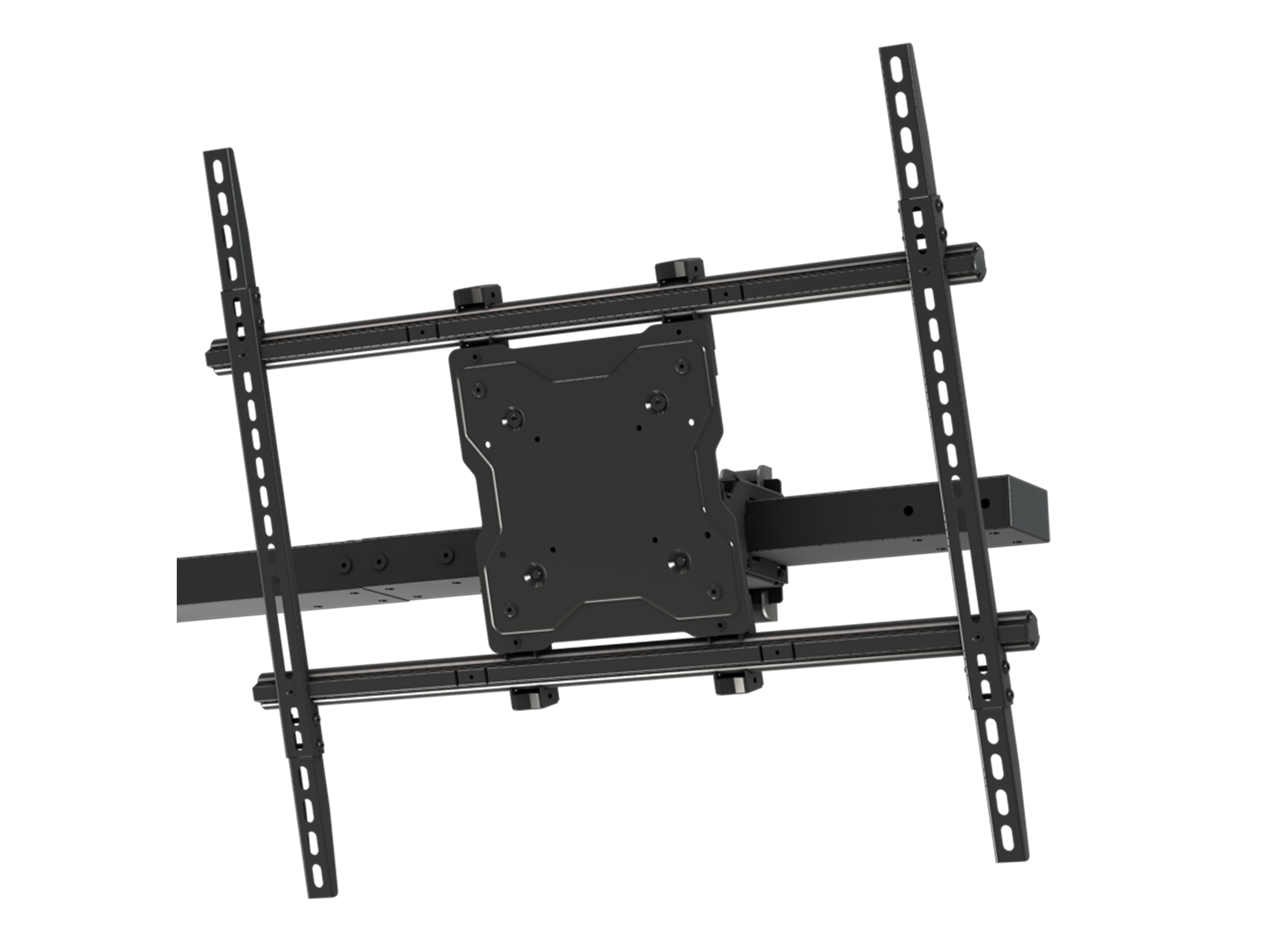

The Mustang Pro MPCM-X86U Ceiling Mounted Menu Board System for 32″ – 75″ LCD and Plasma TVs with a 150 lb load rating. The most flexible and infinitely expandable system for installing menu boards or any in-line single side or back to back configuration for displays 32”-75” and larger. For ease of quoting your customer, prices are based on the number of displays to be mounted. Hang 2,3,10 or more displays in-line. You are limited only by the structure to which the system is attached. Includes all of the necessary components and hardware needed to complete the installation, including the Ceiling Adapter(s). Just add the required drop length of fixed or adjustable column (MPE-Series or MPEA-Series) to complete the solution.

Call us Now at 866-395-0370 for Ordering Information.

Mustang Professional MPCM-X86U Menu Board Display Mount. Max VESA: 800 x 672, Max Weight: 150lbs


Display Sizes: 32″ – 75″ TVs
Load Rating: 150 lbs
Max VESA Pattern: 800x672mm
Orientation: Landscape or portrait
Roll (Side to side): +/- 3°
Tilt: +15°/-5°
Drop Length: Select from MPE-Series or MPEA-Series
Height Adjustment: 1″ increments
Mounting Interface: 1.5″ NPT thread compatible
Construction: Aluminum/High-grade cold rolled steel
Finish: Scratch resistant epoxy powder coat
