MPCM-2X86U Mustang Professional Menu Board Mount


The Mustang Pro MPCM-2X86U Ceiling Mounted Menu Board System for 32″ – 75″ LCD and Plasma TVs with a 300 lb load rating. The most flexible and infinitely expandable system for installing menu boards or any in-line single side or back to back configuration for displays 32”-75” and larger. For ease of quoting your customer, prices are based on the number of displays to be mounted. Hang 2,3,10 or more displays in-line. You are limited only by the structure to which the system is attached. Includes all of the necessary components and hardware needed to complete the installation, including the Ceiling Adapter(s). Just add the required drop length of fixed or adjustable column (MPE-Series or MPEA-Series) to complete the solution.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

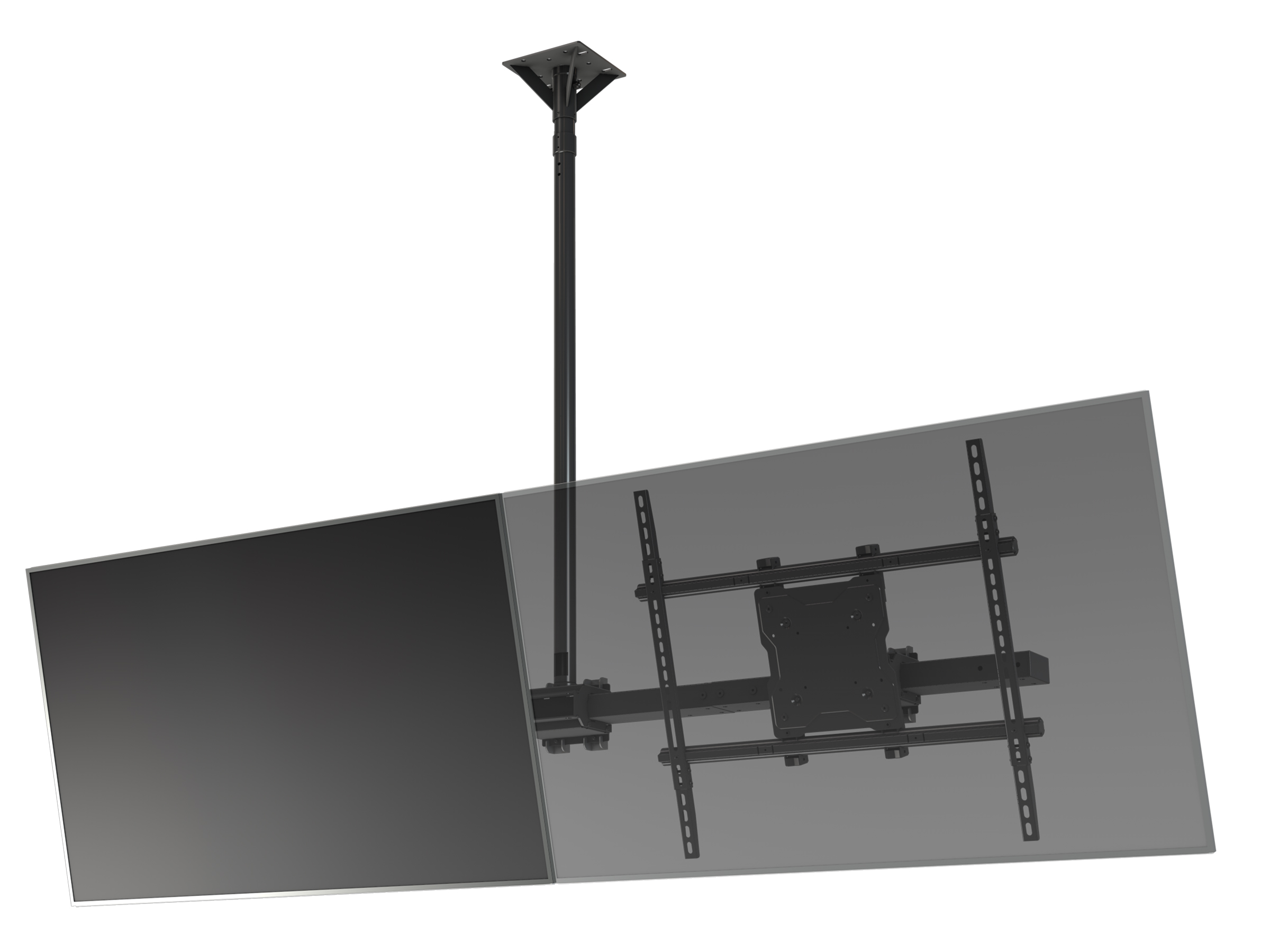

Mustang Professional MPCM-2X86U Menu Board Display Mount. Max VESA: 800 x 672, Max Weight: 300lbs


Display Sizes: 32″ – 75″ TVs
Load Rating: 300 lbs
Max VESA Pattern: 800x672mm
Orientation: Landscape or portrait
Roll (Side to side): +/- 3°
Tilt: +15°/-5°
Drop Length: Select from MPE-Series or MPEA-Series
Height Adjustment: 1″ increments
Mounting Interface: 1.5″ NPT thread compatible
Construction: Aluminum/High-grade cold rolled steel
Finish: Scratch resistant epoxy powder coat
