MPAO-X75ULL Mustang Professional Outdoor Articulating Mount

Description

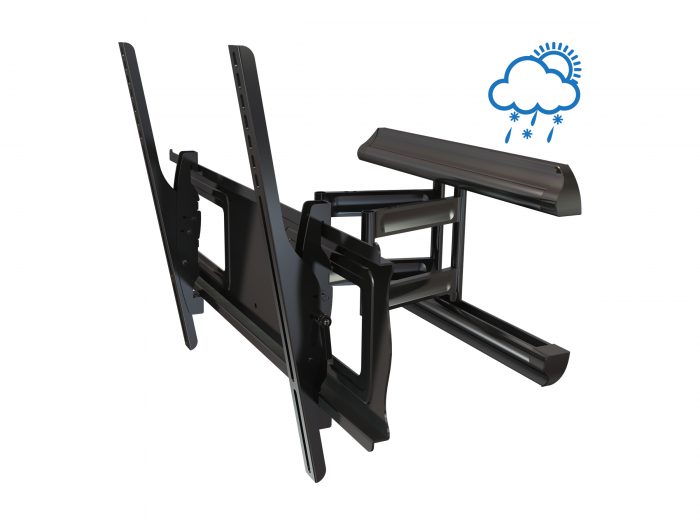

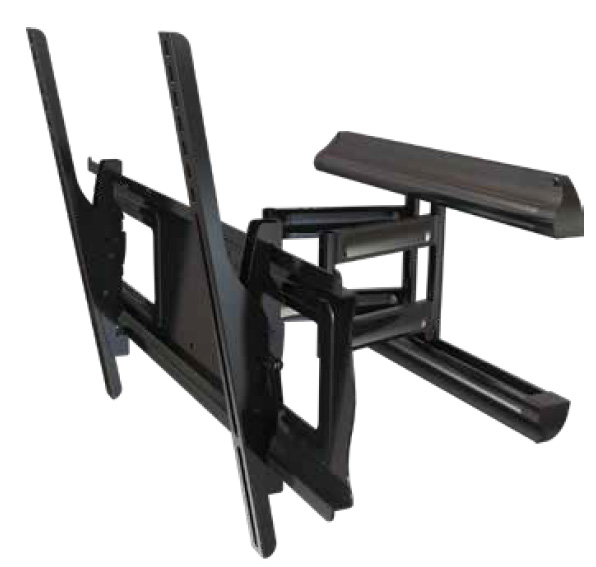

The Mustang Pro MPAO-X75ULL Outdoor Articulating Mount. Universal Mount For 37-70” Displays. Best in class outdoor articulating mount solution. Ideal for outdoor applications, the MPAO-X75ULL is coated with Dacromet® finish to protect from the elements, while offering high functionality, aesthetics, and value. Dual locks ensure high security with the push of a key. Fits a huge variety of displays from 37-63” with through-cord cable management, post installation leveling, and tilting capability for easy display placement and adjustment.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPAO-X75ULL Outdoor Articulating Mount. Max Mounting Pattern: 723x501mm, Max Weight: 130lbs

Specs

Display Sizes: 30” – 70”
Weight Capacity: 130lb (59kg)
Max Mounting Pattern: 723x501mm
Pivot: 41°
Roll (side to side):
Tilt: +15°/-15°
Depth From Wall: 3.8” (96.2mm)
Max Extension: 15.5” (394mm)
Construction: Aluminum/high-grade cold rolled steel
Product Weight: 21.8lb (9.9kg)
Product Finish: Scratch resistant epoxy powder coat
Color: Black
Warranty: Limited lifetime
