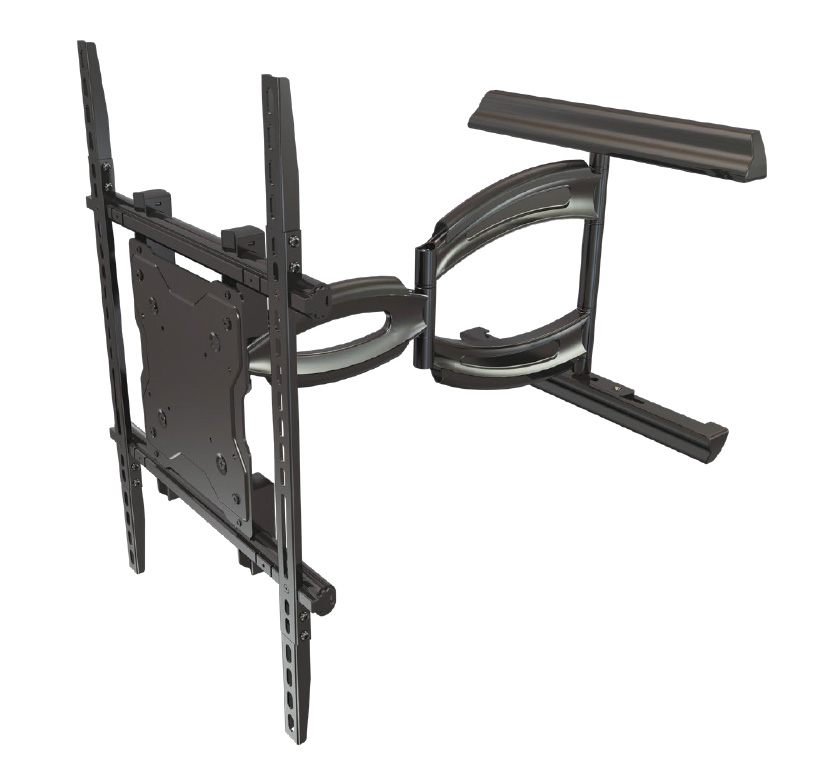

MPA-L64U Mustang Professional Articulating Mount

Description

MPA-L64U Mustang Professional Articulating mount for 37” to 75” displays*. Multiple joint arms hold display 3.5” from wall when retracted and 27” when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect positioning. Makes a secure installation quick and easy, simply hang the display and turn the pre-assembled securing screws to lock in place. Integrated cable management for clean look.

  • Universal VESA compatible design
  • Lateral shift allows for perfect placement
  • Pre-tensioned tilt mechanism for smooth adjustment
  • Post installation display leveling without use of tools
  • Integrated cable management for clean look
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPA-L64U Full Motion Articulating Wall Mount. Max VESA: 600 x 400, Max Weight: 150lbs

Specs

Recommended display size: 37″ – 75″
Weight capacity: 150lb (68kg)
Max mounting pattern: 600x400mm
Min mounting pattern: 300x200mm
Pivot: 90°
Roll (side to side):
Tilt: +15°/-15°
Depth from wall: 3.5” (89mm)
Max extension: 27” (685.8mm)
Construction: Aluminum/high-grade cold rolled steel
Product weight: 22.7lb (10.3kg)
Product finish:
Color: Black
Warranty: 5 year limited
