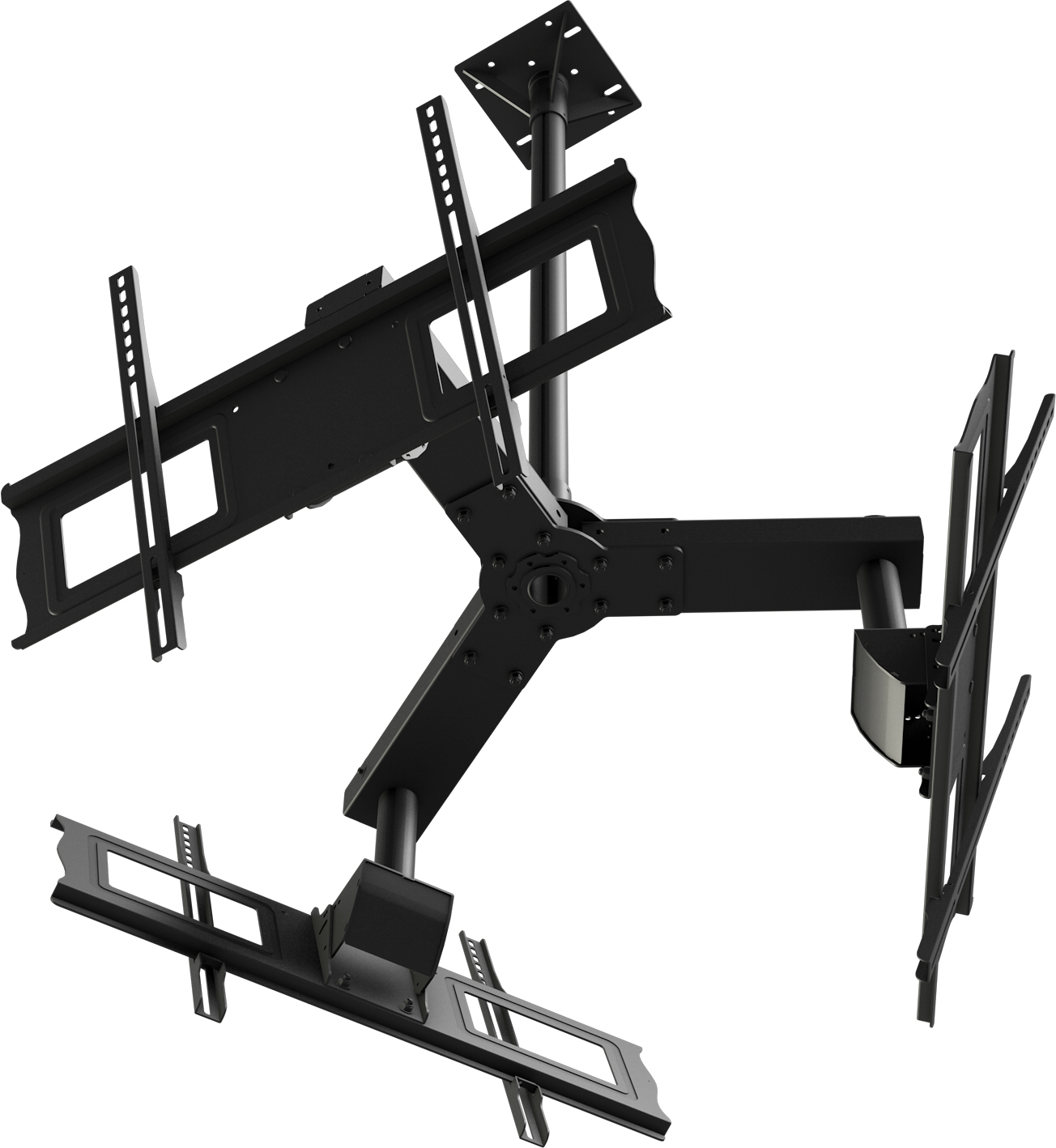

MPCT-L75U Mustang Professional Tri-Display Ceiling Mount

MSRP: $965.24

Description

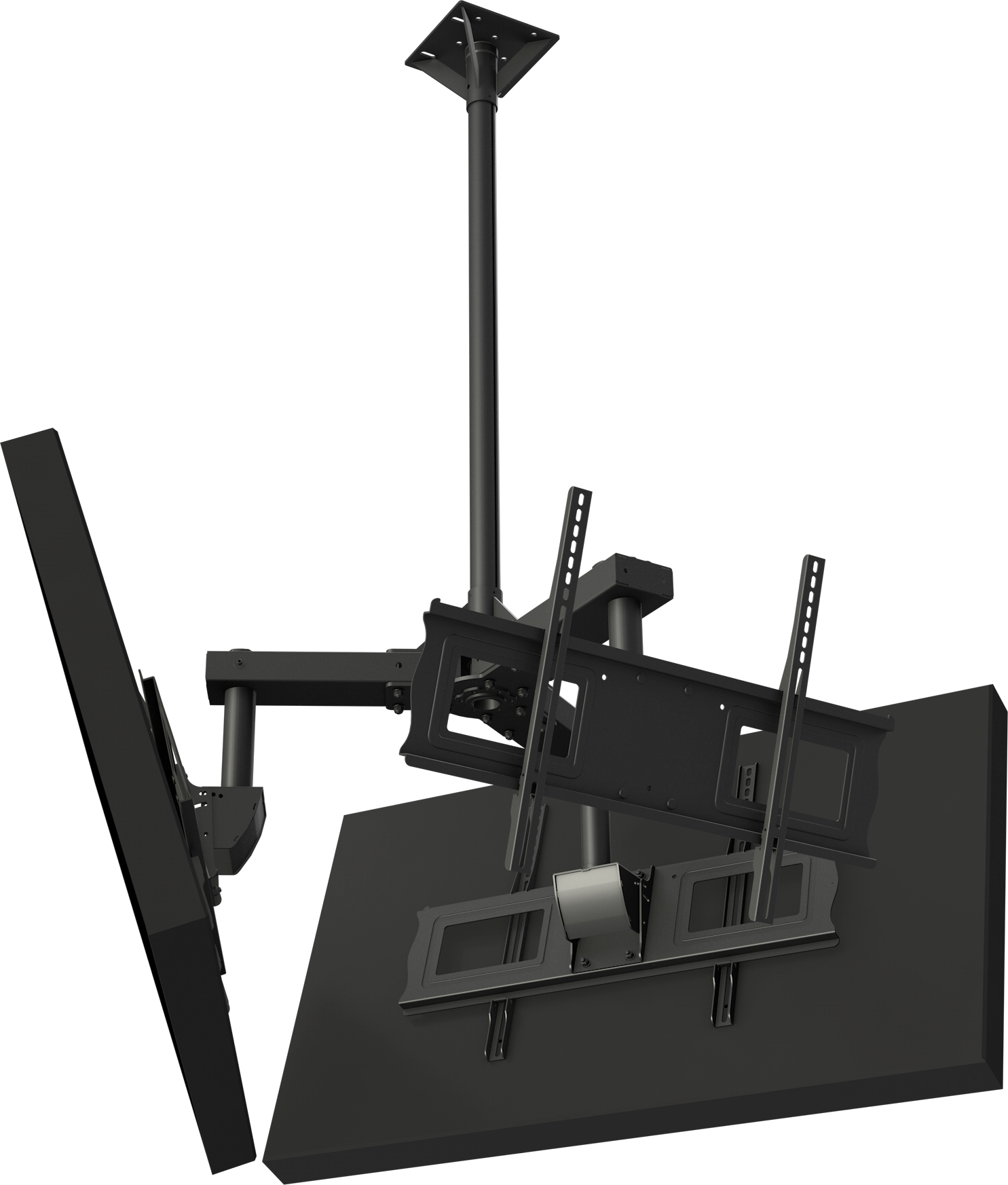

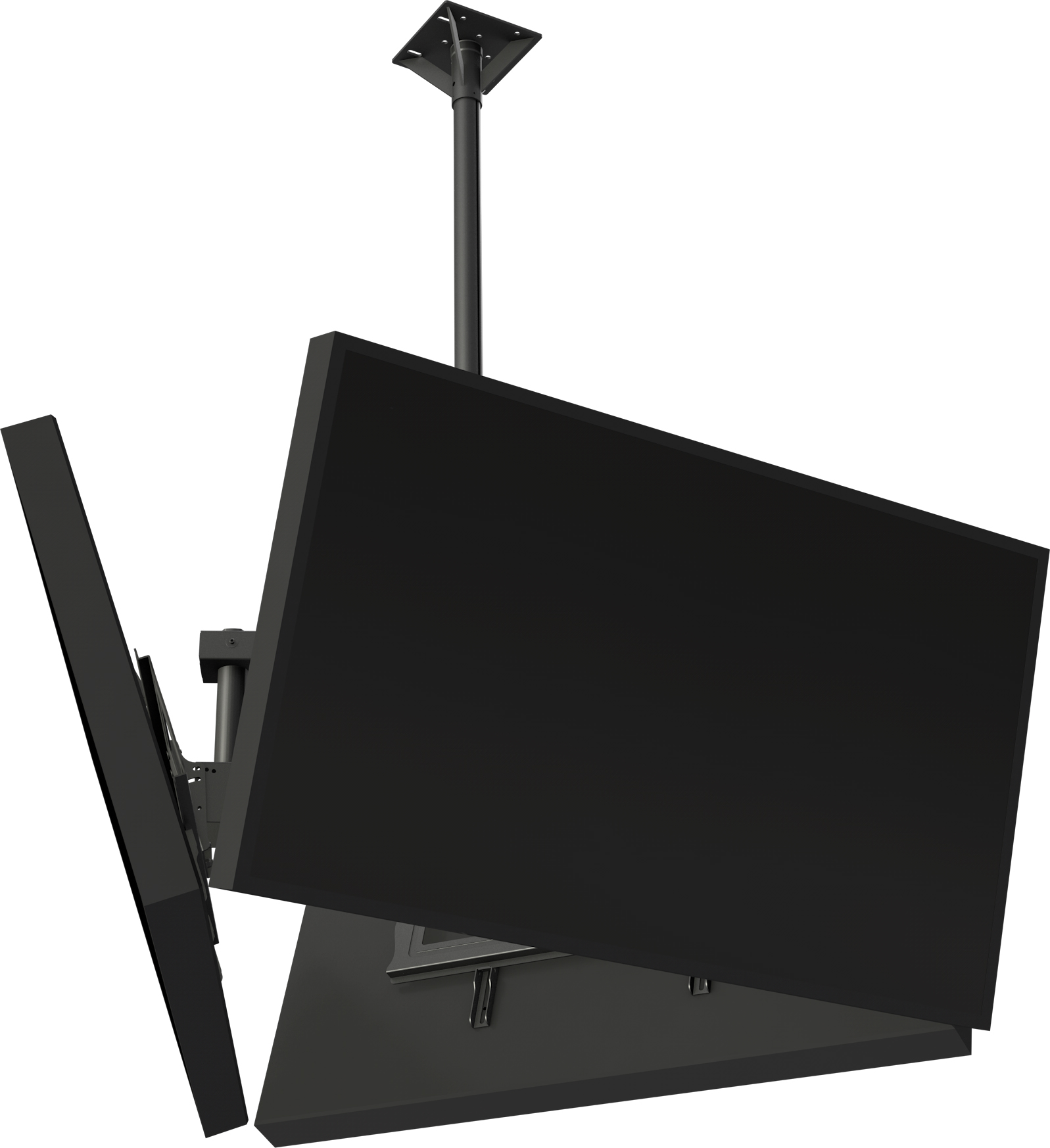

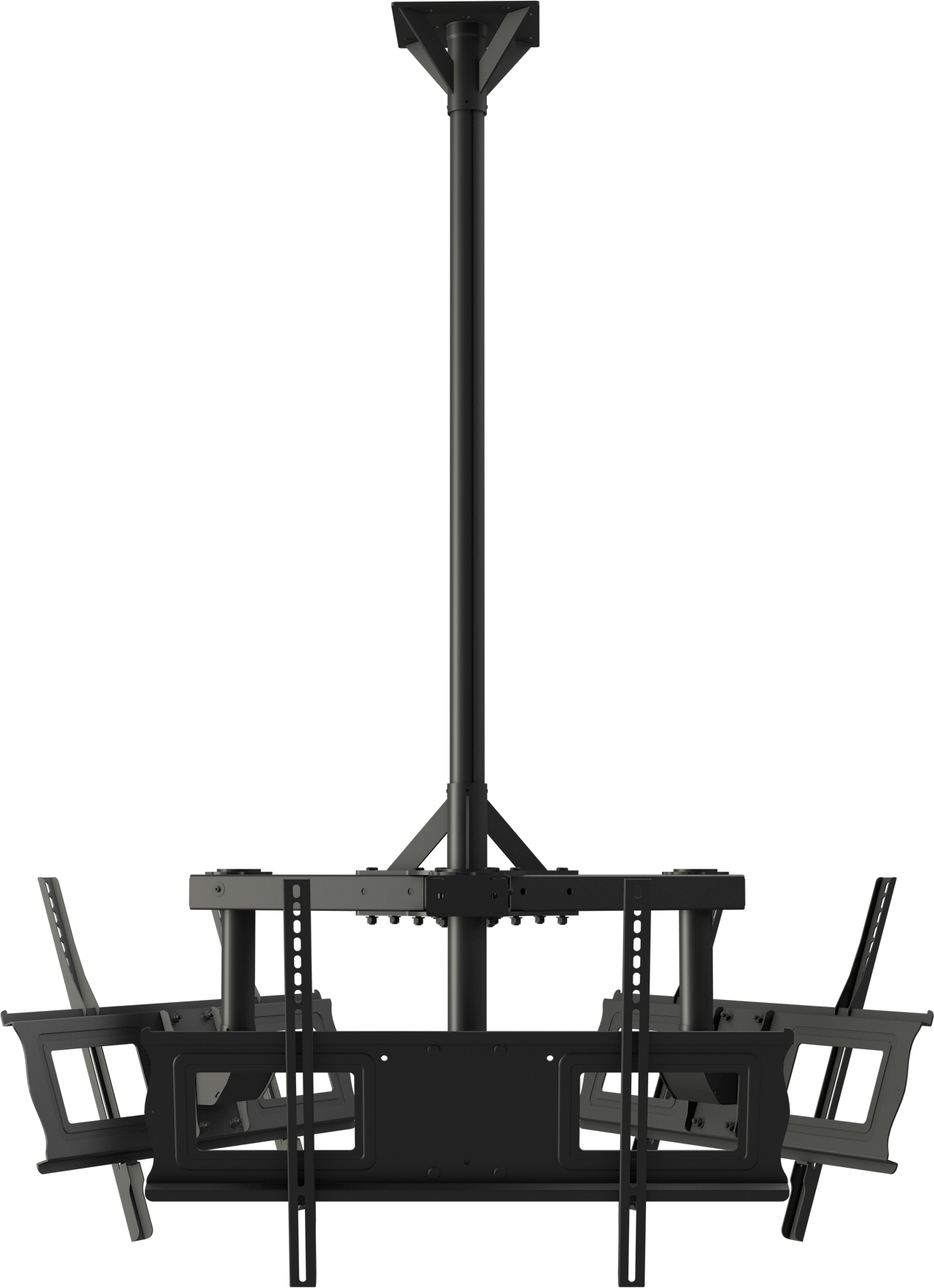

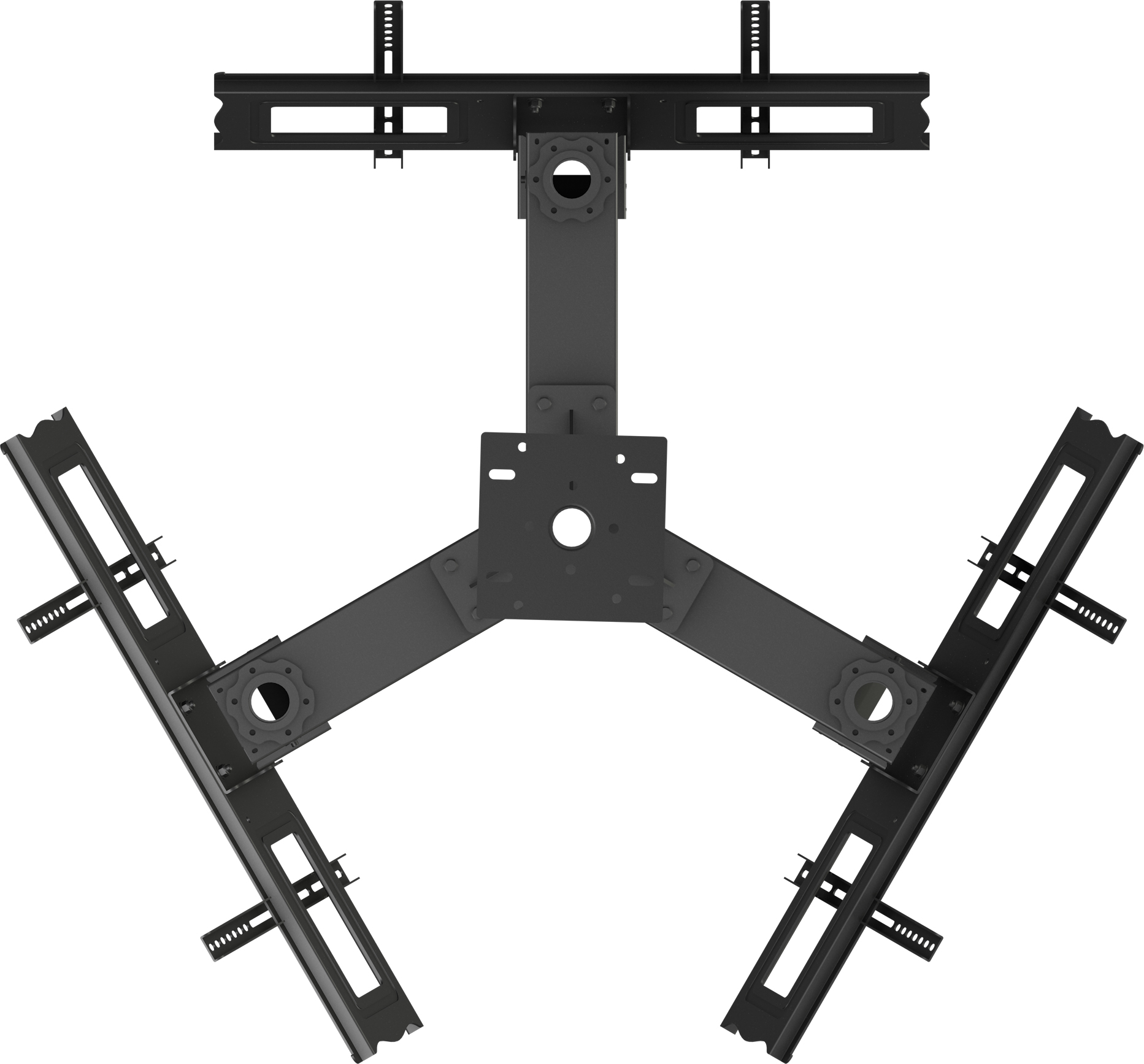

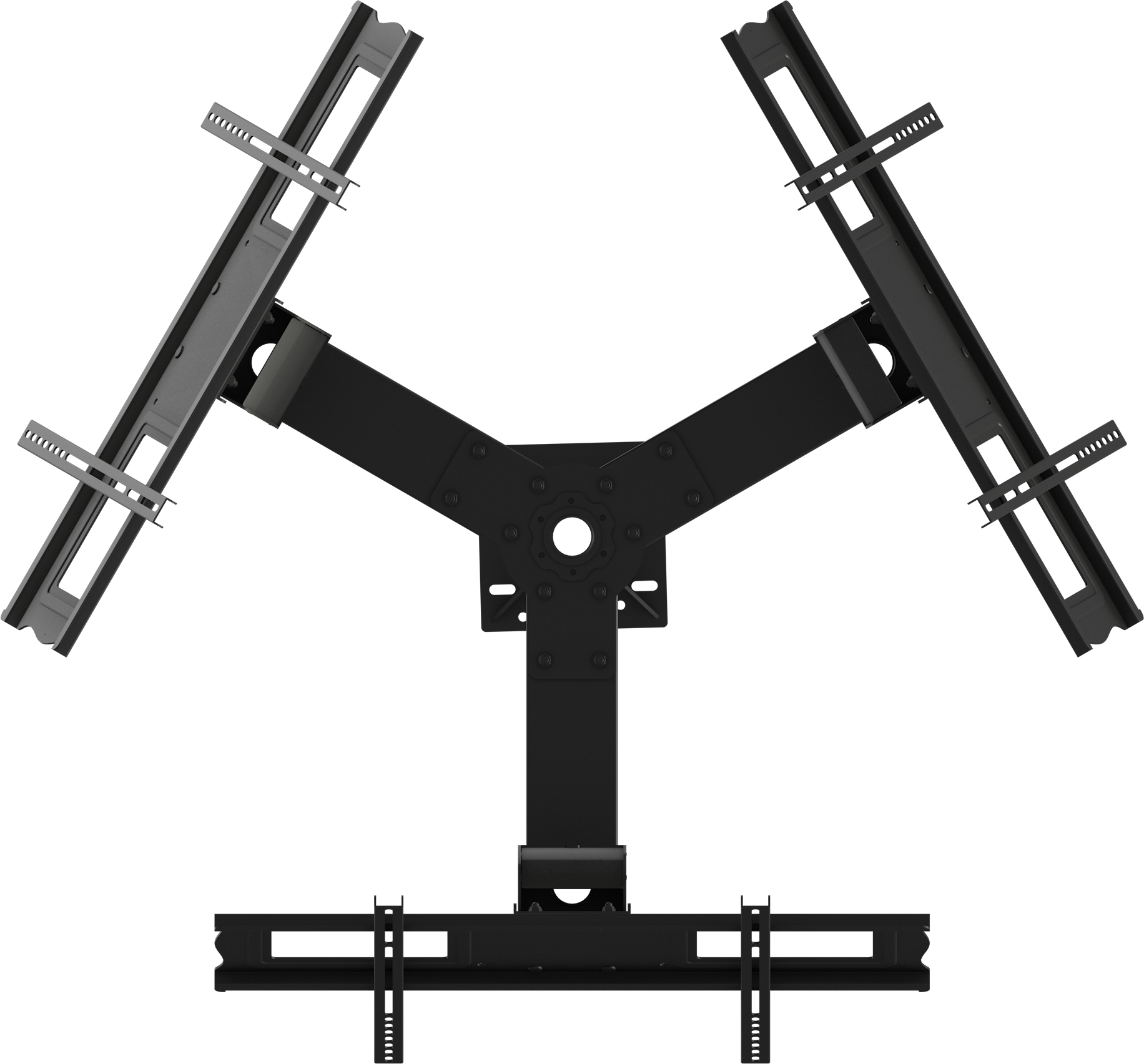

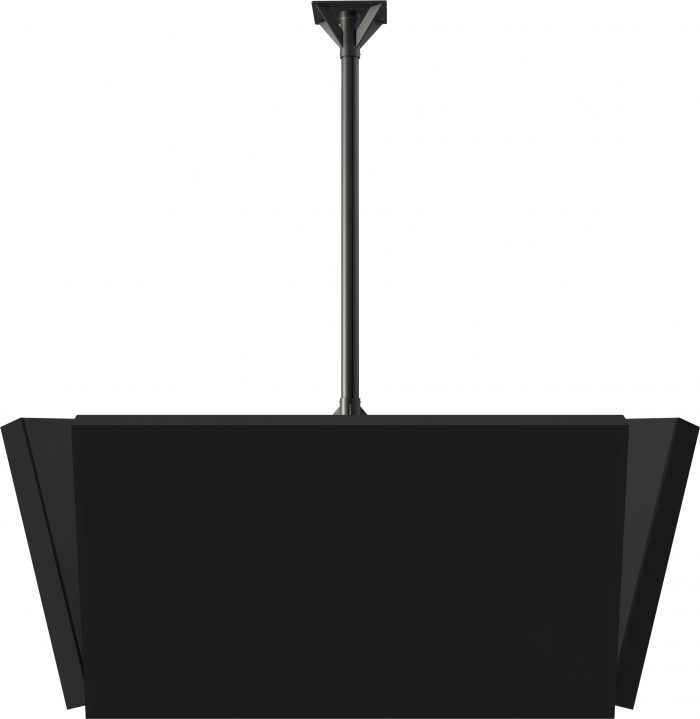

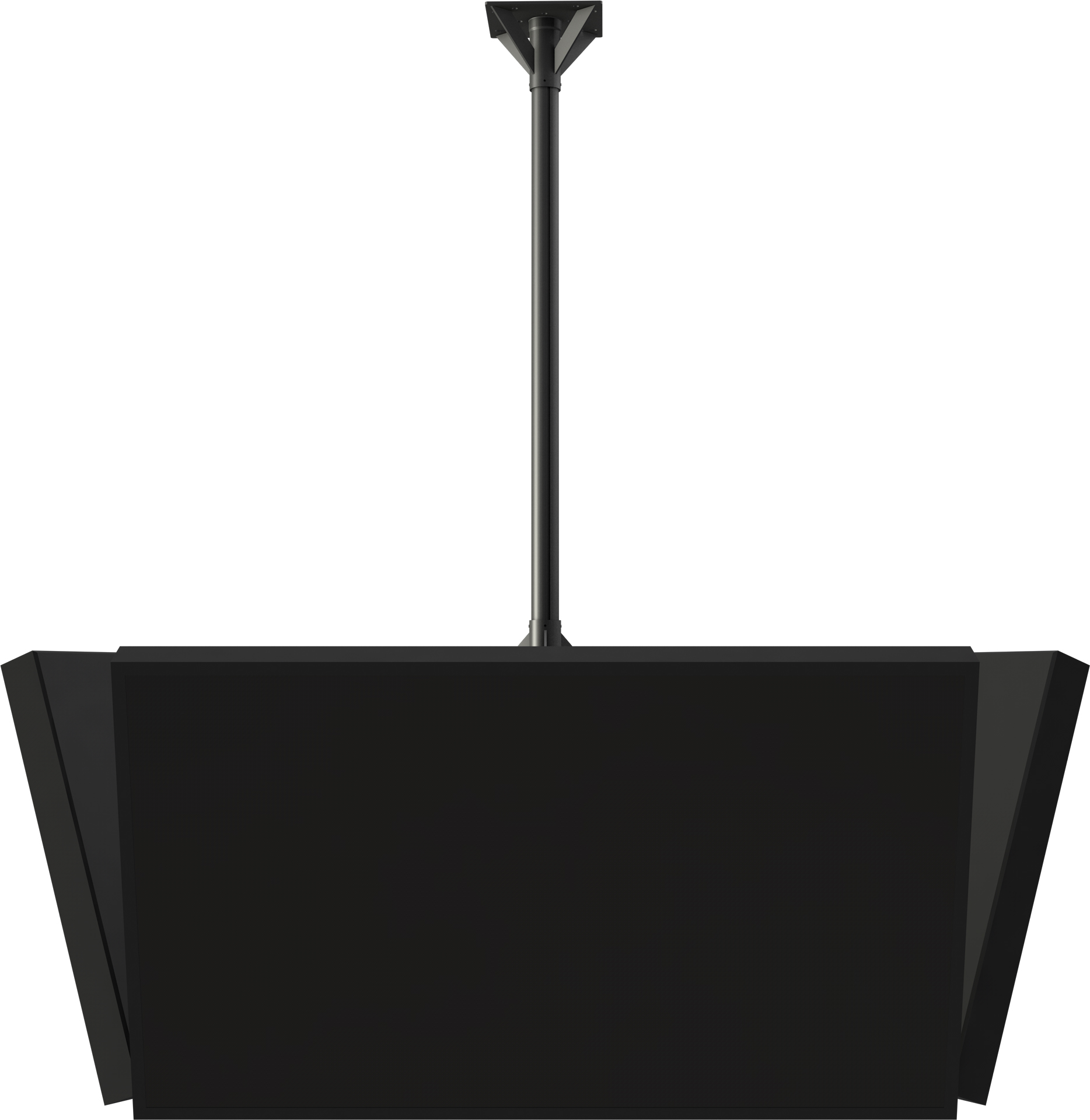

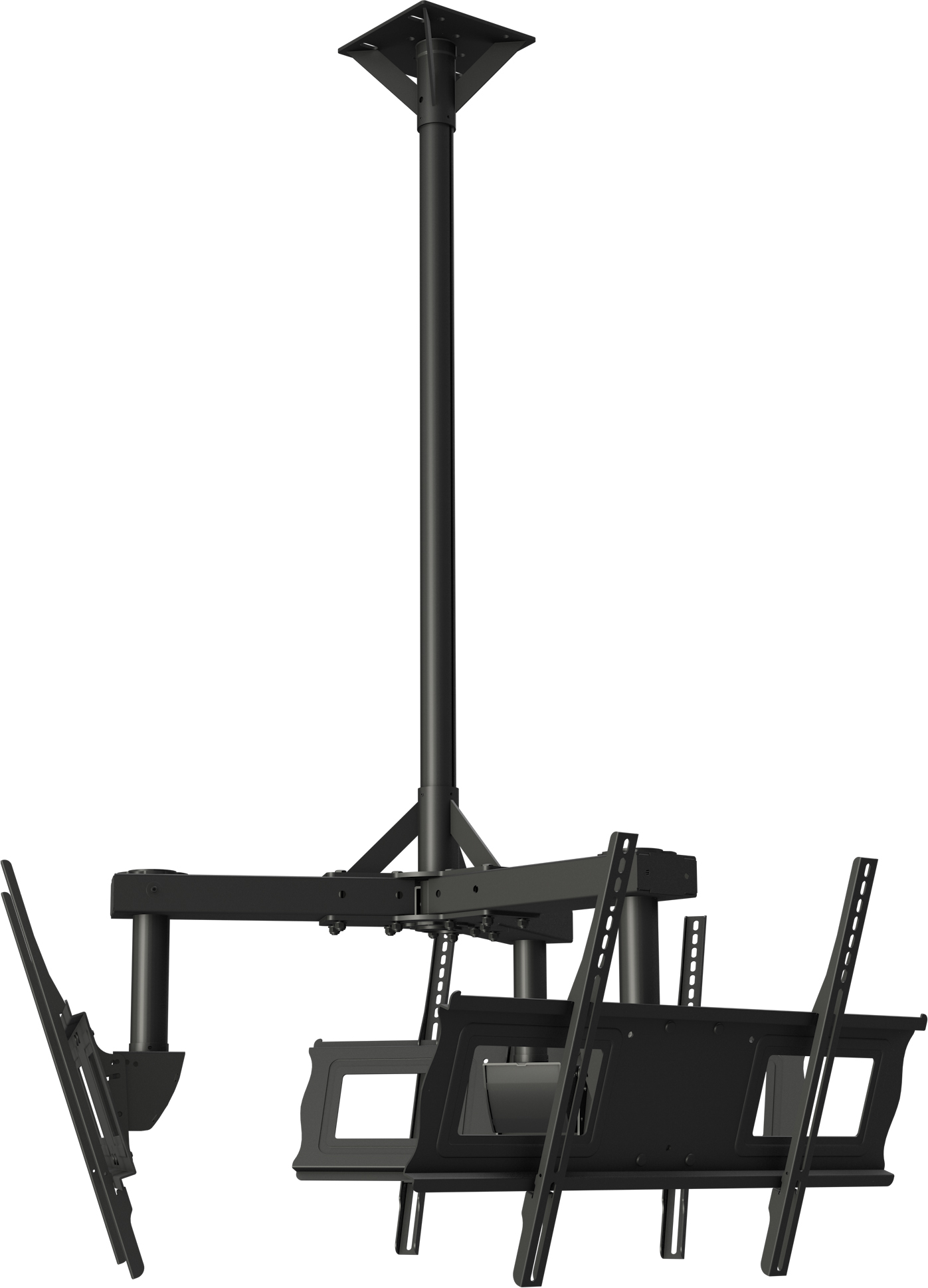

The Mustang Pro MPCT-L75U Tri-Display Ceiling Mount is a complete hardware kit for mounting three displays from the ceiling including a 10’ pipe drop and a heavy duty ceiling adapter for structural or unistrut mounting. Features through-column cord management and lockable rotation of entire system or individual display post installation.

  • Pre-assembled components are easily bolted together
  • System ships in standard boxes, not requiring special shipping and handling arrangements or charges
  • 360º of post-installation lockable rotation of entire system
  • Lockable rotation of each screen (limited only by size of display) for flexible configuration angles
  • Up to 20º of pin-locking incremental tilt adjustment
  • Post installation display leveling without use of tools
  • Pre-sorted hardware pack for easy installation
Call us Now at 866-395-0370 for Ordering Information.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPCT-L75U Tri-Display Ceiling Mount. Max VESA: 723 x 501, Max Weight: 100 lbs per display

SKU: MPCT-L75U Categories: , ,

Specs

Display Sizes: 32″ – 75″ TVs
Load Rating: 100 lbs per display
Max VESA Pattern: 723x501mm
Rotation: 360°
Tilt: +15°/-5°
Mounting Interface: 1.5” NPT thread compatible
Roll (side to side): 6° tool less screen leveling
Construction: High-grade cold rolled steel
Product Weight: 136lb (61.7kg)
Color: Black
Warranty: 5 year limited
