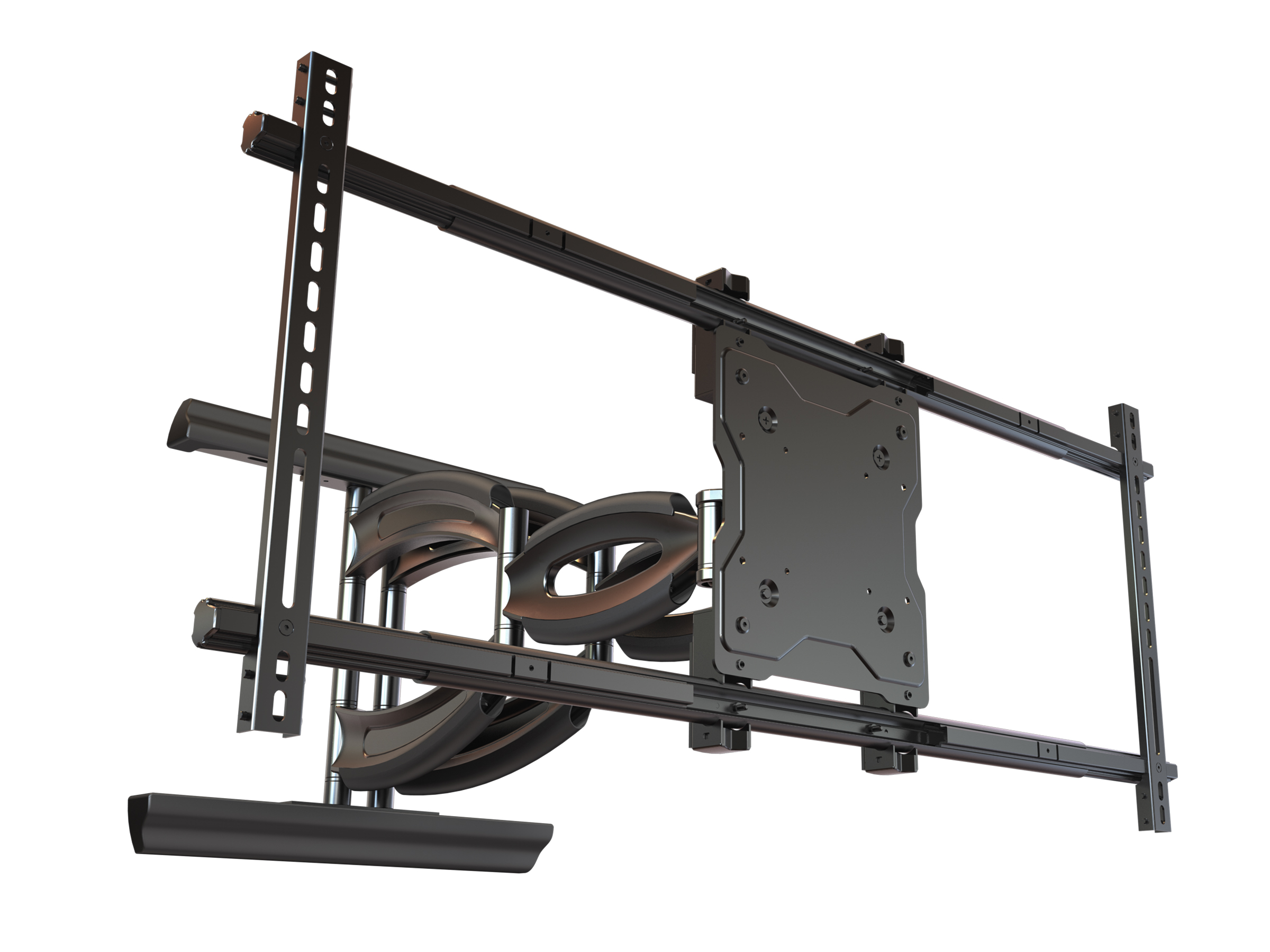

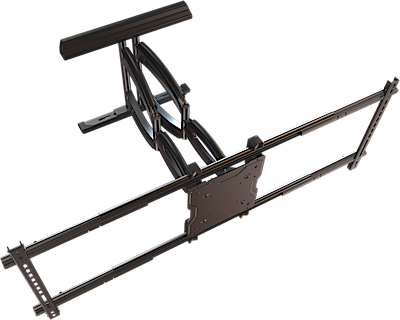

MPA-XHD86U Mustang Professional Full Motion Articulating Mount

Description

NEW Robust Series Articulating mount for large-format 60 to 98” TVs with heavy-duty smooth action dual scissor arm and post-installation leveling. Articulating mount with a heavy-duty dual arm scissor action that provides better balance and smooth movement for large-format 60 to 98” TVs. Post-installation leveling compensates for uneven ceilings as well as the natural sag experienced with 100lb+ TVs. Post-installation lateral and vertical adjustments facilitate precision positioning and provide needed installation flexibility for recessed applications.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

Mustang Professional MPA-XHD86U Mustang Professional Full Motion Articulating Mount. For large-format 60 to 98” TVs with heavy-duty smooth action dual scissor arm and post-installation leveling. 300 lb load rating.

Specs

Display Sizes: 60″ – 98″ TVs
Load Rating: 300 lbs
Max VESA Pattern: 850x672mm
Pivot: 50°
Roll:
Tilt: +15°/-15°
Depth From Wall: 3.4” (86mm)
Max Extension: 27” (686mm)
Construction: Aluminum/high-grade cold rolled steel
